3.5mm Locking Attachment Plate

The 3.5 mm Locking Attachment Plate is an alternative to cerclage cables.  The plate is attached to existing Synthes locking compression plates (LCP) using a connecting screw, to augment stabilization of fractures.

Product Catalog

Surgical Technique Guide

Category:

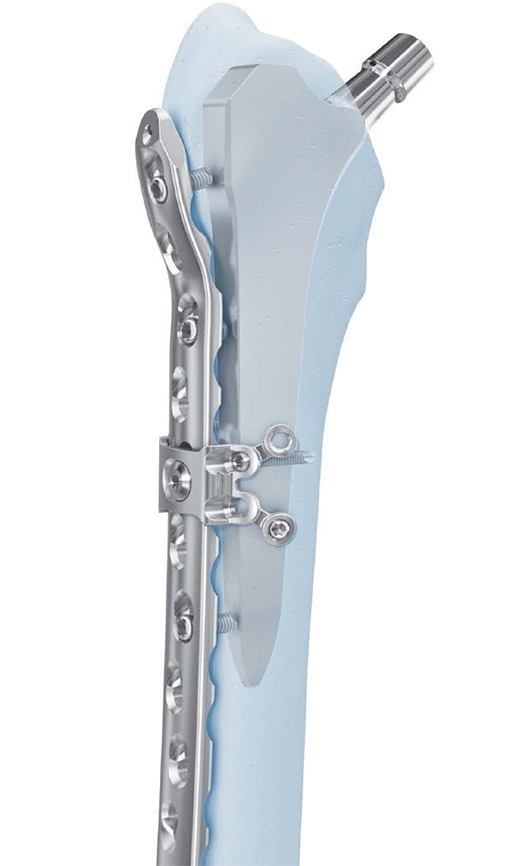

The 3.5 mm Locking Attachment Plate is an alternative to cerclage cables.  The plate is attached to existing Synthes locking compression plates (LCP) using a connecting screw, to augment stabilization of fractures.

The arms on each side of the plate offer the possibility of bypassing the prosthesis stem with 3.5 mm locking screws (or 3.5 mm cortex screws).  The locking capability is important for a fixed-angle construct in periprosthetic fractures and fractures in the presence of intramedullary implants, particularly in osteopenic bone where screw purchase is compromised.  These screws do not rely on plate-to-bone compression to resist patient load, but function similarly to multiple, small, angled blade plates.

Features & Benefits

Compatible with the Synthes 4.5 mm locking compression plate (LCP)

Low profile and anatomically contoured

Angled 3.5 mm locking and 3.5 mm cortex screws on each side of the plate avoid the prosthesis stem

3.5 mm locking screws create a fixed-angled construct that improves fixation

The arms can be bent and easily cut to better fit specific patient anatomy
