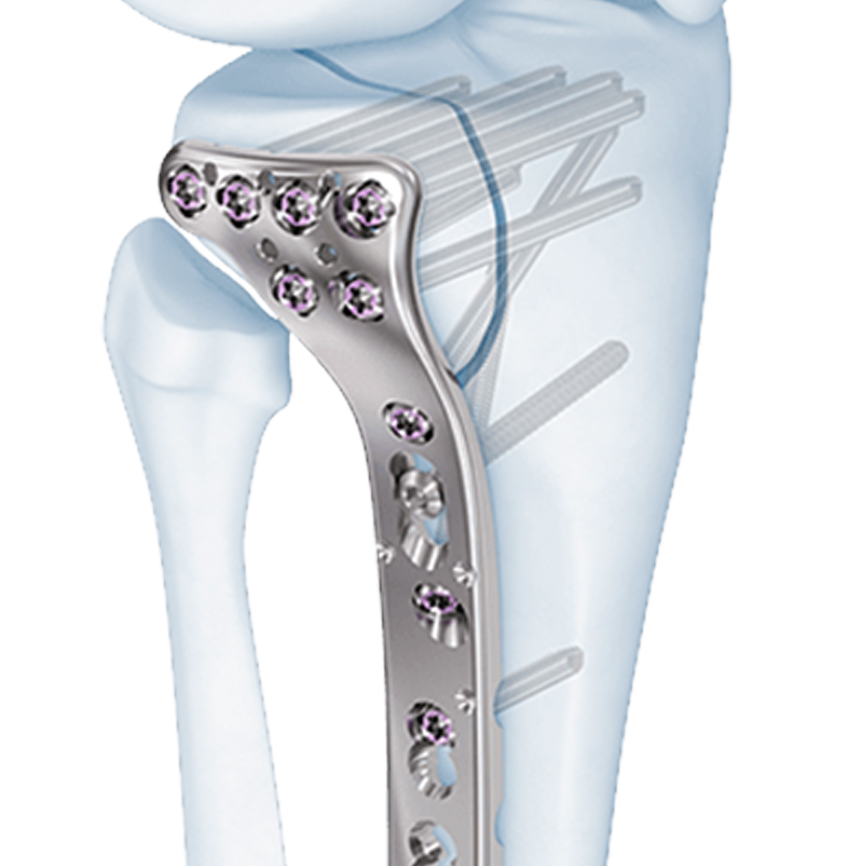

3.5mm VA LCP® Proximal Tibia Plate

The Synthes 3.5 mm VA-LCP® Proximal Tibia Plate is part of the VA-LCP Periarticular Plating System which merges variable angle locking screw technology with conventional plating techniques.

Product Catalog

Surgical Technique Guide

Category:

The Synthes 3.5 mm VA-LCP® Proximal Tibia Plate is part of the VA-LCP Periarticular Plating System which merges variable angle locking screw technology with conventional plating techniques.

The 3.5 mm VA-LCP Proximal Tibia Plate System has many similarities to standard locking fixation methods, with a few important improvements. Variable angle locking screws provide the ability to create a fixed-angle construct while also allowing the surgeon the freedom to choose the screw trajectory before “fixing” the angle of the screw. A fixed-angle construct provides advantages in osteopenic bone or multifragmentary bridge-plated fractures where screws do not rely on plate-to-bone compression to resist patient load.

The 3.5 mm VA-LCP Proximal Tibia Plate has variable angle holes in the plate head and neck, along with variable angle Combi holes in the plate shaft that combine a dynamic compression unit (DCU) hole with a variable angle locking screw hole. The variable angle Combi hole provides the flexibility of axial compression and variable angle locking capability throughout the length of the plate shaft.

Features & Benefits

Plate includes variable angle locking holes and variable angle COMBI holes

Plate head includes two rows of variable angle rafting screws allowing placement of the screws to capture posterior medial fragments while also providing the ability to avoid or abut proximal tibial components in periprosthetic fracture treatment

Plate allows for placement of two variable angle kickstand screws

In the plate neck, a long hole allows for compression, preliminary fixation, and plate adjustment

Plate is available in two bends, Small and Large Bend, to accommodate varying tibial anatomies

System contains 3.5 mm Variable Angle Locking Screws

Screws can be angled anywhere within a 30° cone around the central axis of the plate hole

Instrumentation facilitates minimally invasive screw insertion
