Tibia-Plate-1

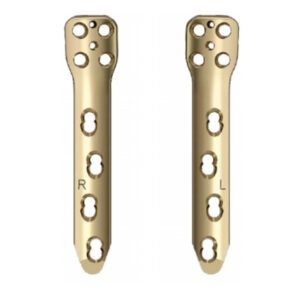

TomoFix® Medial High Tibia Plate

The TomoFix Medial High Tibia Plate, part of the TomoFix Osteotomy System, is pre-contoured to fit the medial proximal tibia, reducing the need for intraoperative bending and soft tissue irritation. Two plate options, standard and small, are available to accommodate varying patient anatomy. The solid midsection provides the strength necessary to sustain the osteotomy.

Product Catalog

Surgical Technique Guide

Category:

The TomoFix Medial High Tibia Plate, part of the TomoFix Osteotomy System, is pre-contoured to fit the medial proximal tibia, reducing the need for intraoperative bending and soft tissue irritation. Two plate options, standard and small, are available to accommodate varying patient anatomy. The solid midsection provides the strength necessary to sustain the osteotomy. The tapered plate end facilitates minimally invasive insertion. Three Combi holes provide the flexibility of axial compression and locking capability. The most proximal holes (plate head) and most distal holes (plate shaft) accept locking screws, aiding in angular stability. The TomoFix Medial High Tibia Plates are available in commercially pure titanium.

The TomoFix Osteotomy System is a comprehensive plating system for stable fixation of osteotomies around the knee. The TomoFix Osteotomy System consists of five plates designed for specific parts of the anatomy:

  1. TomoFix Medial High Tibia Plate
  2. TomoFix Medial High Tibia Plate, small
  3. TomoFix Lateral High Tibia Plate
  4. TomoFix Lateral Distal Femur Plate
  5. TomoFix Medial Distal Femur Plate
Features & Benefits

Precontoured to fit the medial proximal tibia, eliminating the need for intraoperative contouring and reducing soft tissue irritation

Available in 2 sizes, standard and small, to accommodate patients anatomy

Long shaft to support and deflect forces in the diaphysis

Plates have tapered ends allowing minimally invasive plate insertion

Locking screws create a fixed-angle construct, providing angular stability
